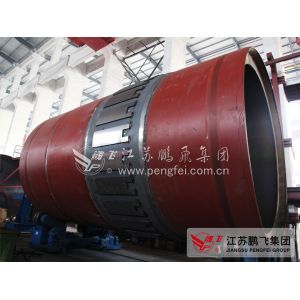

    Hydraulic 90 Tph ISO Metallurgy Rotary Kiln

    Ask Lasest Price
    Brand Name : Pengfei
    Model Number : Φ2.8---Φ6.0
    Certification : CE,ISO
    Price : USD400000-USD3000000
    Payment Terms : L/C,T/T
    Supply Ability : 1 set per 180 days
    Delivery Time : 180 days
    • Product Details
    • Company Profile

    Hydraulic 90 Tph ISO Metallurgy Rotary Kiln

    WELCOME TO JIANGSU PENGFEI GROUP CO.,LTD


    Hydraulic 90 Tph ISO Metallurgy Rotary Kiln


    How time flies!It is almost in a moment that Pengfei Group has grown up from a small one to a big one and from weak to strong. Through more than fifty years of hard work, Pengfei Group has become a large-size production base of equipments and machineries for cement plant,metallurgical, chemical works, power plant and environmental protection industries both famous af home and abroad.
    Looking forward to the future, Pengfei Group will carry on the past merits and overcome the shortcomings to make it an intemational first-class modern enterprise with hard struggle and great efforts on the aspects of technology, quality and service. We will provide complete sets of equipments.machinery and good-after service for new-type dry process rotary kiln cement production line with the capacity of 2500TPD, 4000TPD, 5000TPD, 8000TPD 10000TPD, the compound fertilizer plant with the annual capacity of 300, 000 tons, the power plant and the metallurgical factory.
    "Make new friends and remember the old friends." Recalling the past in the light of the present the development of Pengfei Group has received the all-out concerns and supports from leaders at different levels, specialists, businessmen, other friends at home and abroad. Hereby, I would like to avail myself of this opportunity to express our sincere thanks and the assurance of high consideration to you. We will run true to form to cooperate with old and new specialists,businessmen and friends in all walks of life to make a more promising future

    • The size of rotary kiln
    • ApplicationQuick lime plant
      Equipment nameФ3.2×50m rotary kiln
      1.Technical parameter
      Capacityt/h300tpd
      Slope%3.5
      Supporting No.2pier
      Speed
      Main speedr/min0.3~3.0
      Drive typeSingle drive
      Main drive motor
      Type(VFD Motor)ZSN4-280-091B
      PowerkW110kW
      Rated speedr/min1000
      Armature voltage440V
      Exciting voltage180V
      Speed adjusting ranger/min100-1000
      Protection gradeIP54
      Auxiliary motor
      Type:Y160M-4B
      PowerkW11
      Rated speedr/min1460r/min
      Rated voltageV110V
      Rated speedr/min0-2000r/min
      Auxiliary gear box
      TypeZSY160-31.5
      Rated power
      Main drive gear box
      TypeYNS1110-63VIBL
      Total center distance1110
      Total nominal speed ratiomm63
      2.Main part
      ShellpcsQ235-B
      MaterialQ235-B or 20g
      Tyrepcs
      MaterialZG310-570
      Hardness>180
      Qty2Pcs
      Girth gearpcs
      MaterialZG310-570
      HardnessHB=200
      Qty1Pcs
      Sealing at kiln inletSteel sealing
      Qtyset1
      Sealing at kiln outletSteel sealing
      Qtyset1
      Supporting roller part
      Supporting rollerZG340-640
      HardnessHB>190
      QtyPcs2
      Supporting roller shaft
      Material45#
      HardnessHRC45-48
      Qty2Pcs
      Thrust roller supporting unit
      Qtyset1
      Supporting roller
      Supporting roller shaft
      Thrust roller
      MaterialZG340-640
      HardnessHB>190
      Bearing base of thrust supporting roller
      Qty1pcs
      Oil pump station and control panel
      TypeNC-14
      Qtypcs1
      Pinion part
      Pinion
      Material35SiMn
      HardnessHB>207-269
      Qtypcs1
      Pinion shaft
      Material35CrMo
      HardnessHB>217-265
      Qtypcs1
    • Workshop
